Video and images¶

Video¶

Video of the door opener actuating —

Fully assembled¶

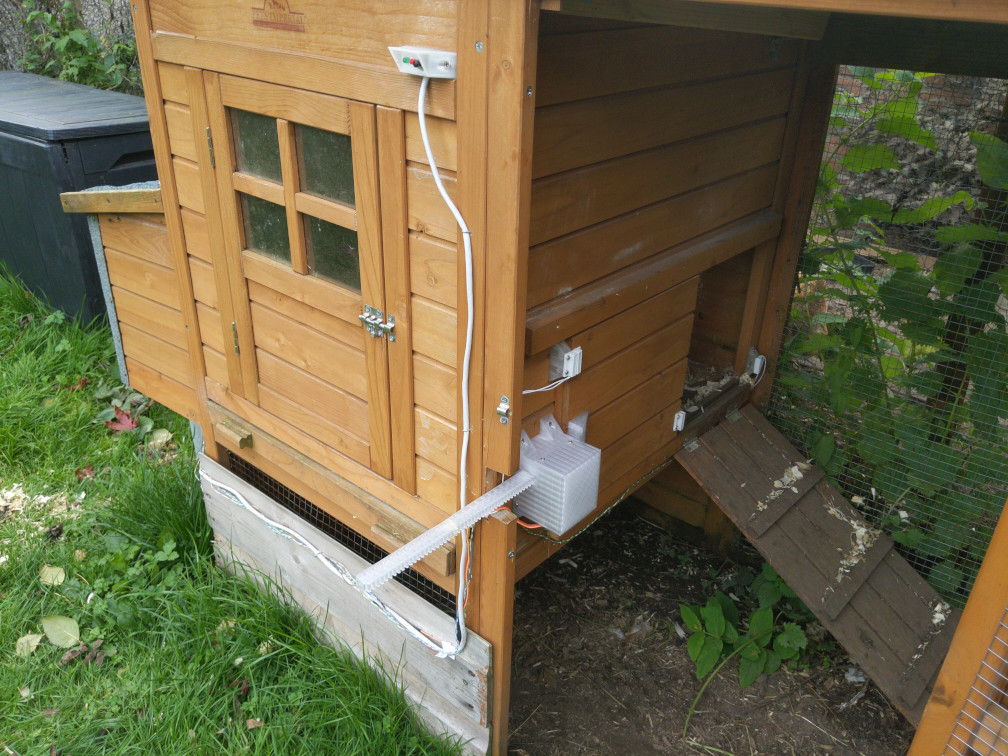

The opener looks like this when assembled —

Pico case¶

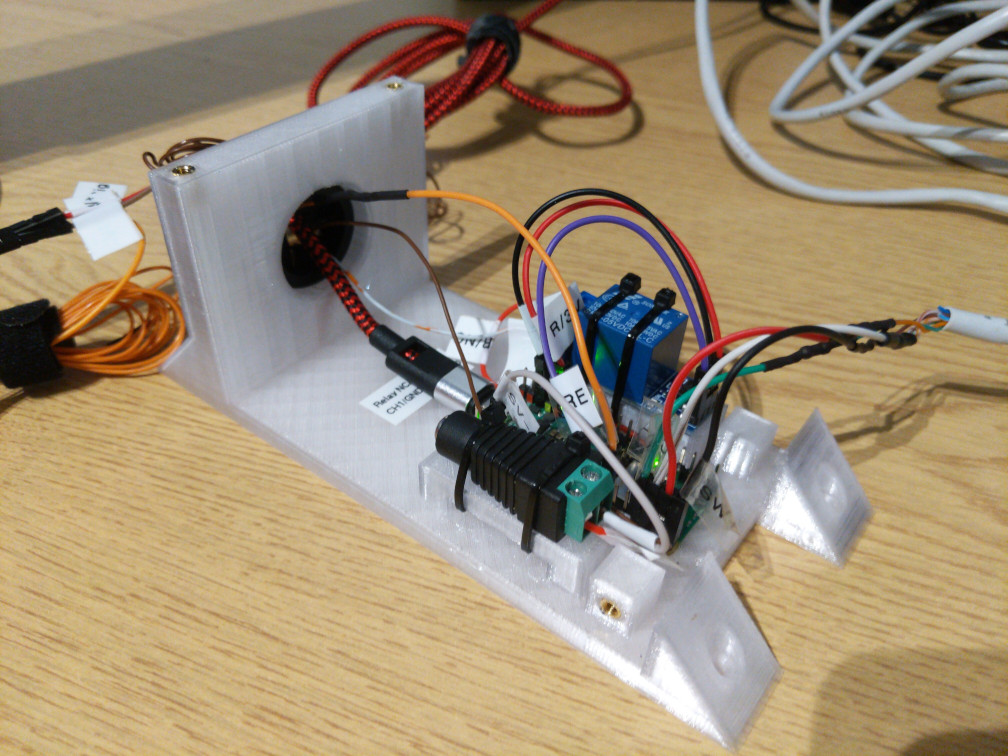

The casing for the Pico is out of shot in a plastic box underneath the coop which also holds a mains supply. The case for the Pico without the cover looks like this —

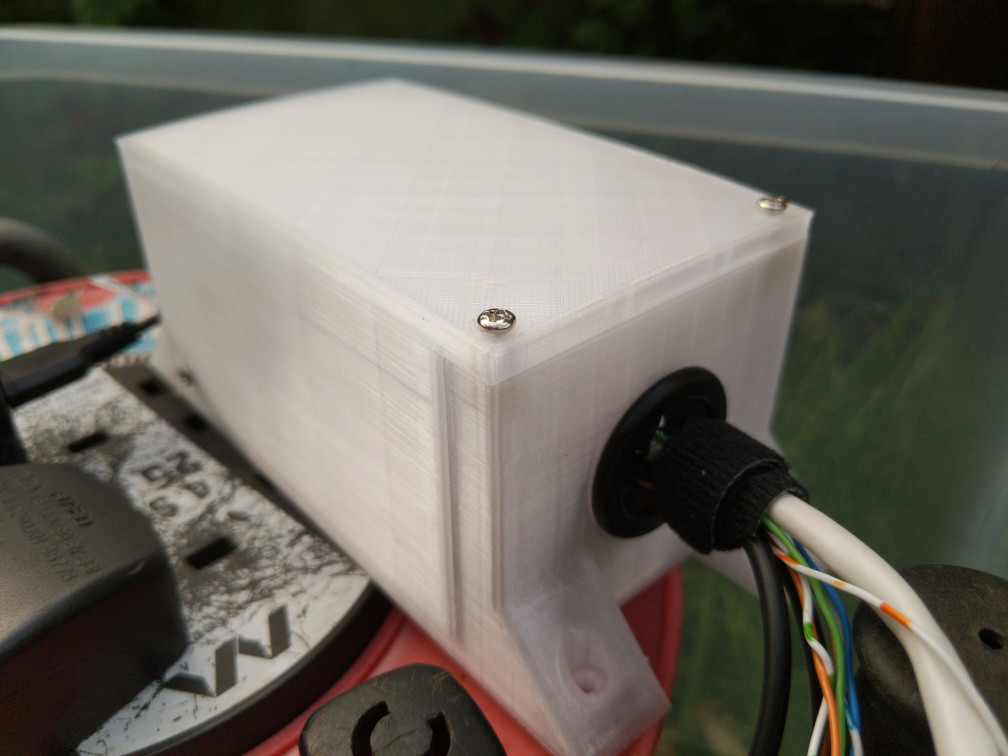

Note that the project is only partially assembled in the above picture and not all cables are shown. Fully assembled, the case looks like this —

Control panel¶

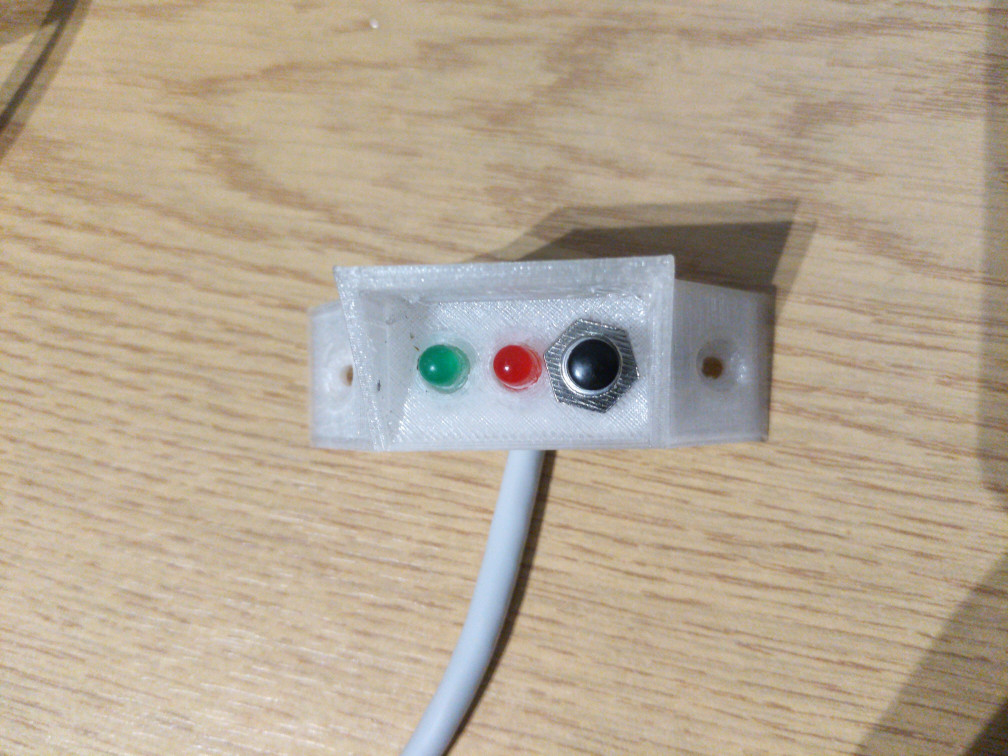

The control panel looks like this —

Reed switch mounts¶

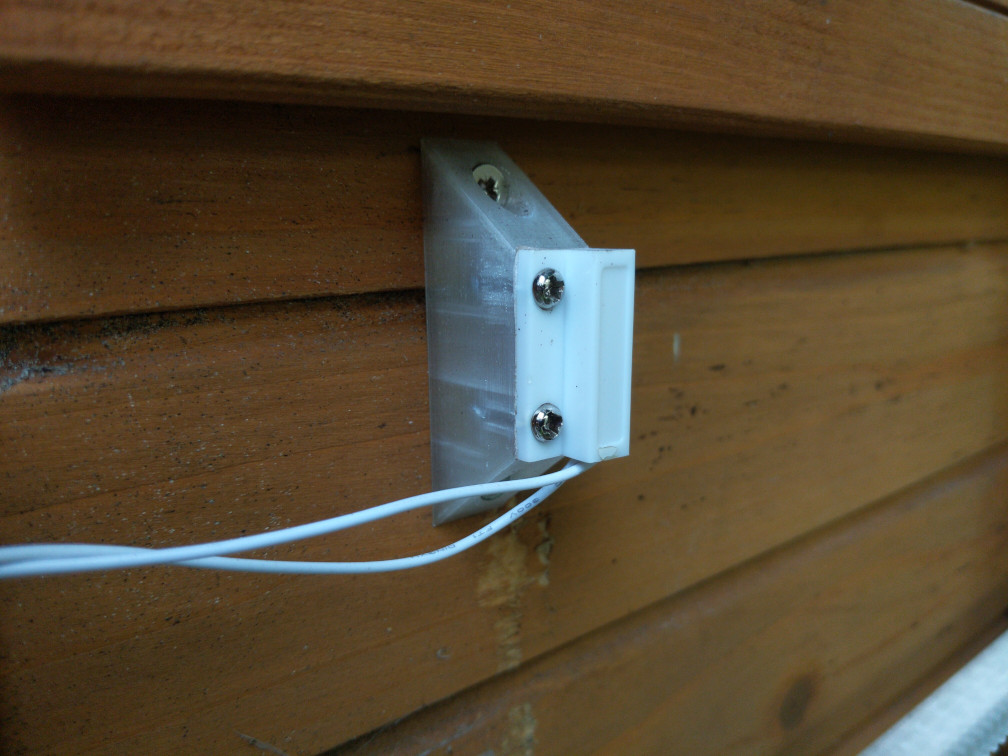

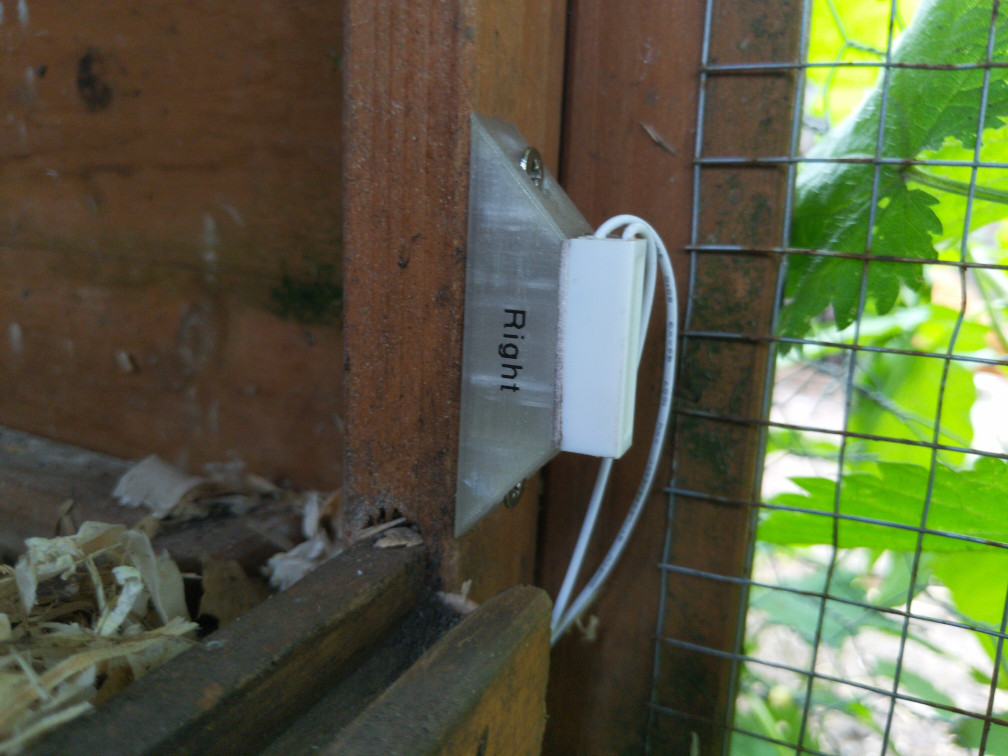

Left and right reed switch mounts (respectively) look like this —

Servo rack¶

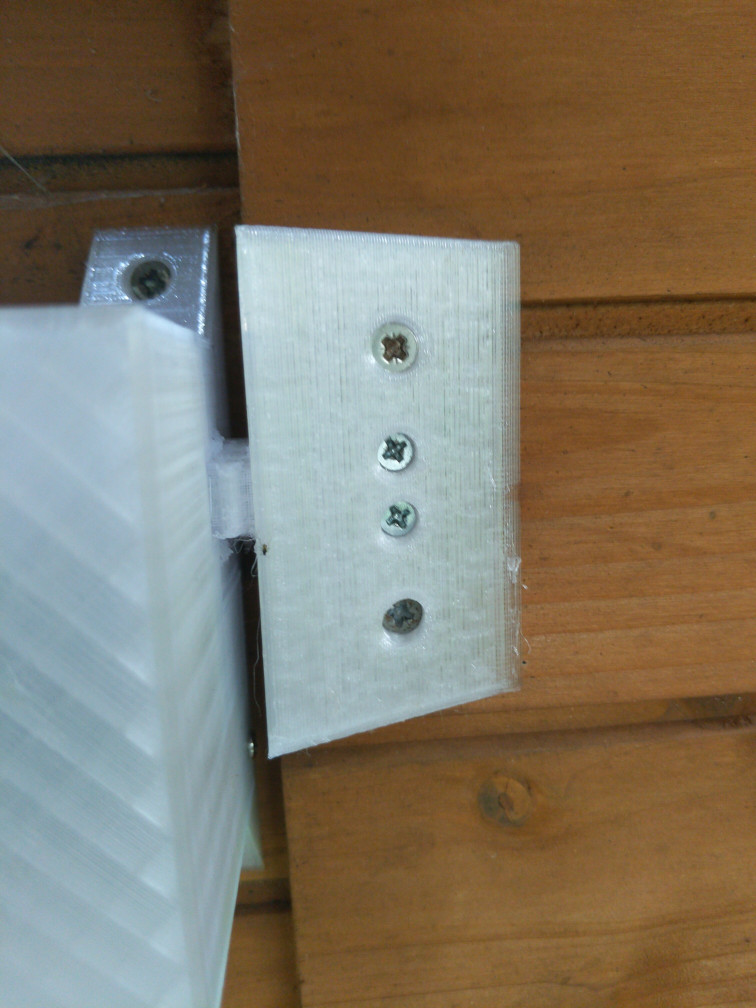

The servo rack as mounted to the door looks like this —

Door opener¶

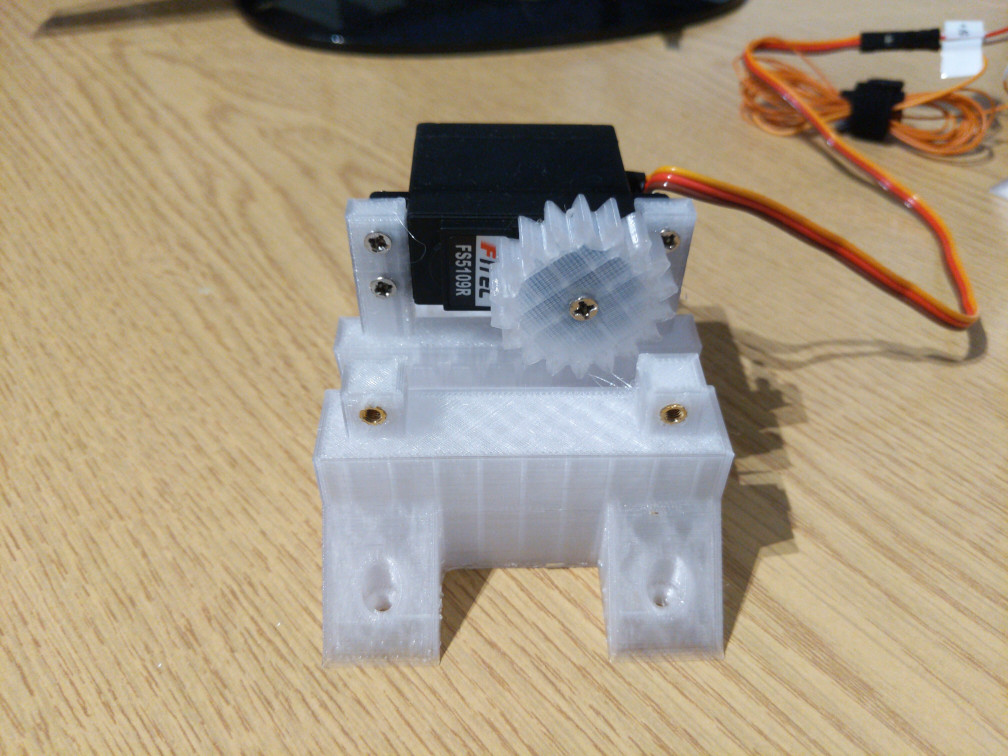

The servo as mounted in the door opener base looks like this —

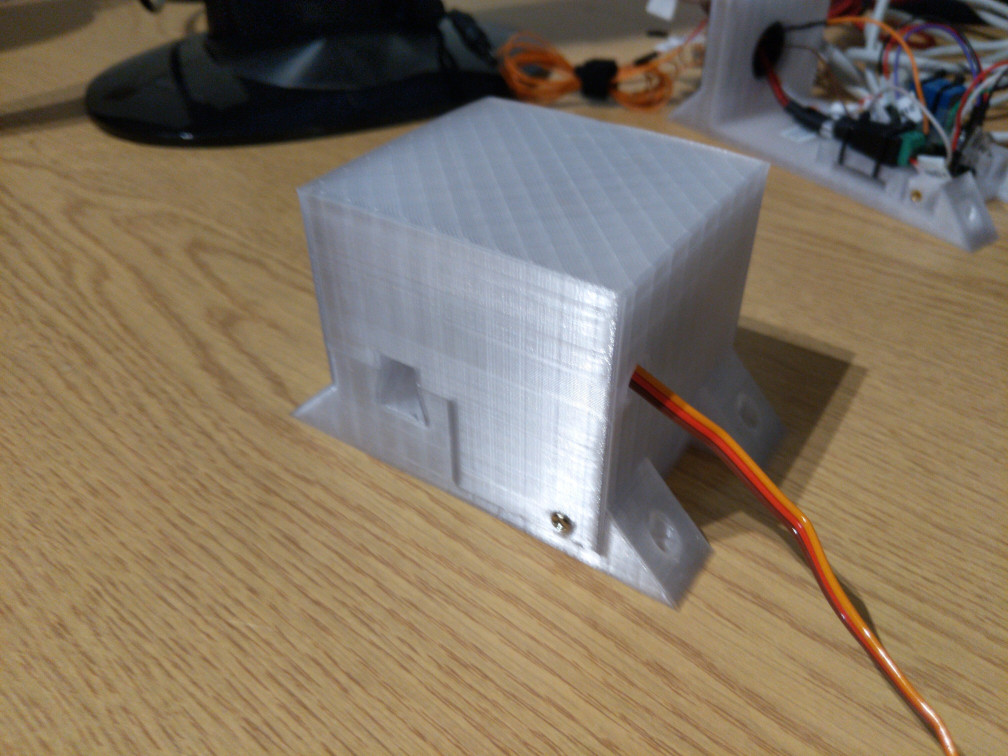

And fully assembled —
